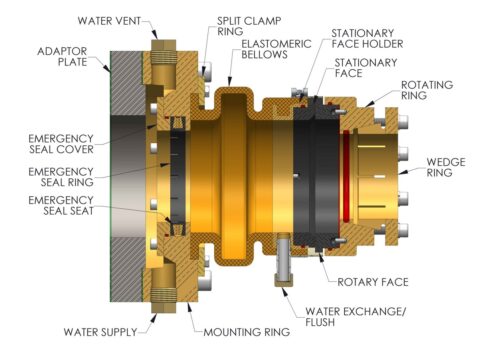

Thordon TG100 seal for water lubricated propeller shafts

The Thordon TG100 is a new mechanical seal for 86mm (3.375”) to 305mm (12”) propeller shafts found in workboats, dredgers, tugs, yachts, patrol craft and other coastal vessels operating in either cleanor dirty, abrasive-laden water.

Manufactured to the same exacting standards as our high performing range of Thordon bearings, the TG100 seal uses the highest quality, hard wearing, silicon carbide faces and our proprietary elastomeric polymers to offer the best combination of strength/ stiffness and flexibility/elasticity. Unlimited shelf life on elastomeric bellows

  • Unique emergency seal allows stand-alone operation to get you back to port without damaging the seal
  • Elastomeric bellows accept axial/radial shaft movement and compensate for alignment issues
  • Manufactured for long wear life providing lowest life cycle costs
  • Wedge “lock” design ensures the rotary face is perfectly square to the shaft
  • Hydraulically balanced to accommodate various drafts
